MTP®/MPO Fiber Cables for High-density Cabling System

Why not join us to explore MTP Optic cable to see how MPO optic Jumper benefit any high density cabling system, to discover what kinda advantage of this kind cable have to better manage cable efficiently ,Unlock the endless potential of MPO / MPO Optic Cabling bring us to lit up the future of Data driven digital world,

Why Choose MTP / MPO Cable

MPO Fiber Jumpers are in common used into high speed data center where requires a high density cabling at a limited space data center as of the following up competitive edges MTP jumpers have, includes:

Flexibility:MPO Optic Cable can be used flexibly into future proof data centers and other network optic cabling systems,

Scalability:MPO / MTP includes 8 up to 24 fiber available to allow any network capacities expansion and migration to higher generation networks.

Reliability and Optical Mechanical property

MPO Patch Cable features reliability to better help organize well cabling needs with low insertion loss at a high speed network operation environment, rather than universal MPO jumper, armored MTP/MPO fiber jumpers uses a lot Outdoor at a harsh condition as of its strongly compression resistant

What MTP/MPO Portfolios includes

MTP/MPO Trunk Cables

Trunk cables made with MPO connectors terminated at both ends of optical ribbon cable, inside our plant, we provide OS2, OM3,OM5 fiber modes with 8 up to 24 fibers in a one-piece MPO connectors with jacket flame rates available on Riser,OFNP,LSZH, PVC and so on, aside that, the polarities you should consider into your procurement when you gonna buy one to fit in your network cabling systems, custom polarities of MPO / MTP cable includes: Type A, type B. Type C, so all the above points, MPO Solution should be best solution to be chosen to apply into any passive network infrastructure backbone cabling and enable engineers to speed up the network deployment for your campus LANs or any data center facilities.

MTP®/MPO Harnesses

MPO / MTP Harness are kinda multi fiber cable with one piece MTP / MPO connector terminated on one end of cable and terminated over multiple universal optic connectors, such as, LC connector, FC connectors, SC connectors, ST connectors on another ends, mostly used for 40 G QSFP+ PLR4 to 10 G SFP+ LR, 400 G OSFP / QSFP-DD DR4 to 100 G QSFP DR and 400 G OSFP / QSFP-DD XDR4 to 100 G QSFP FR optics direct connection and high density data center applications.

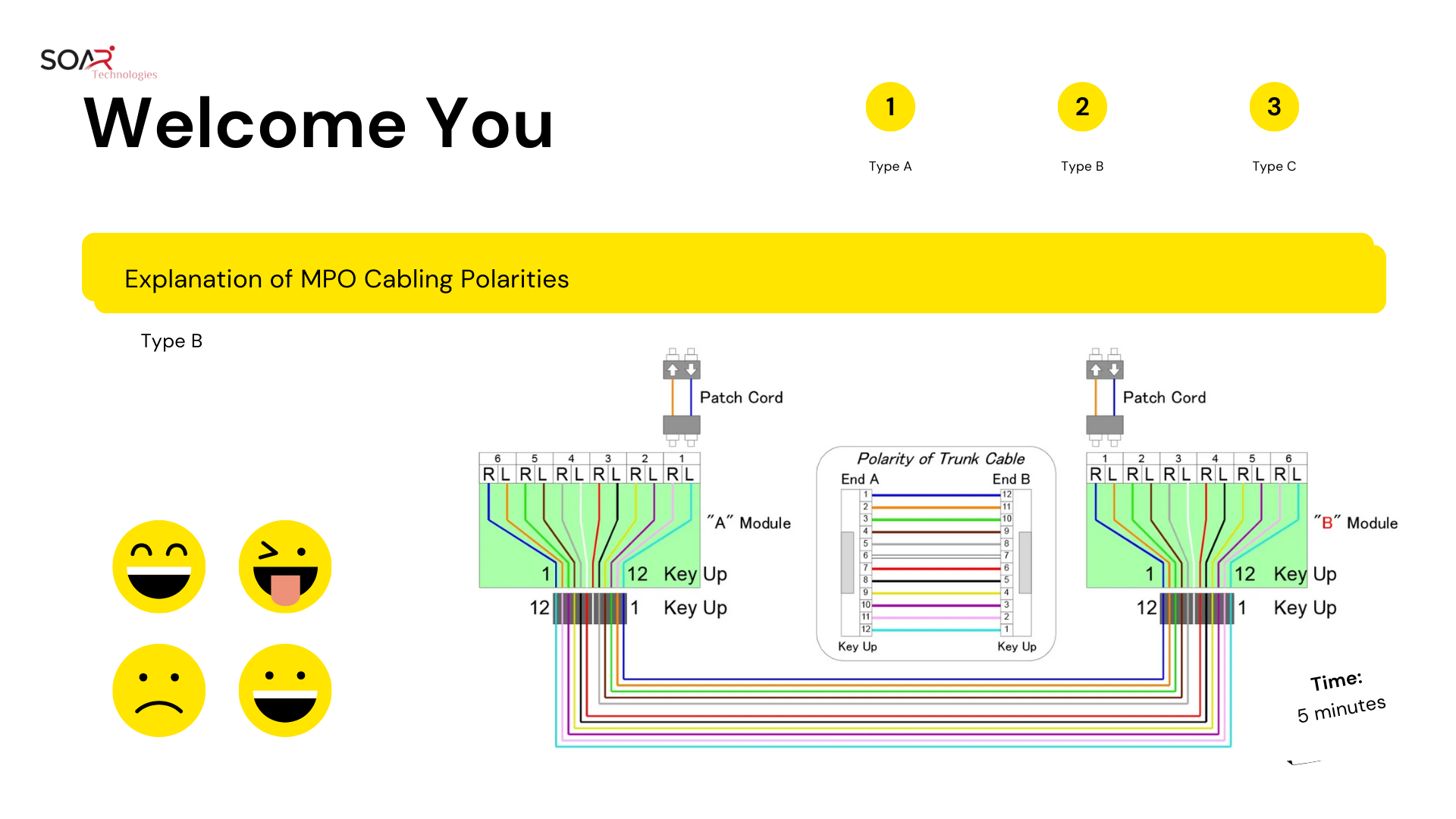

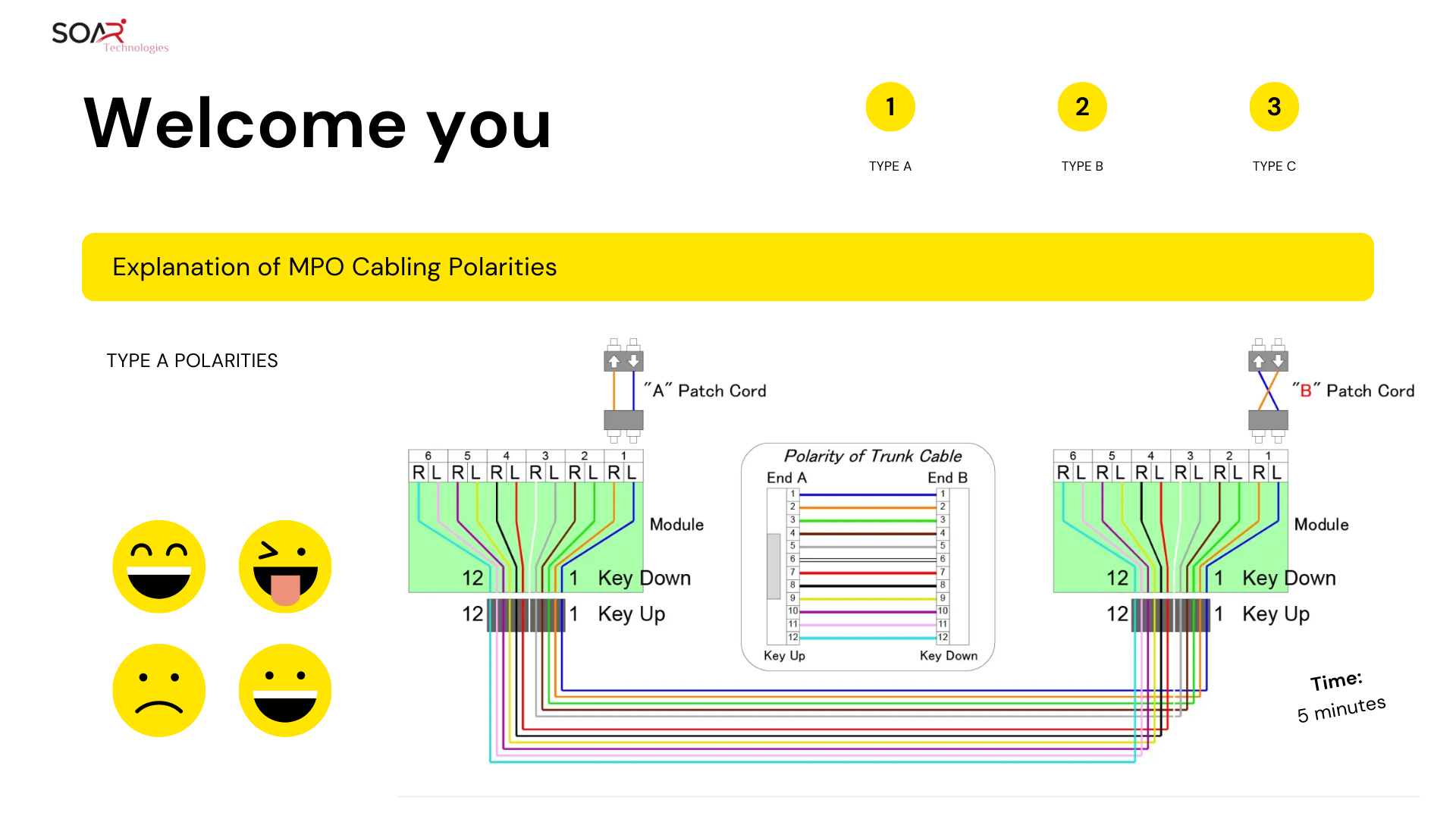

How to differentiate the polarities of MPO/MTP Cable

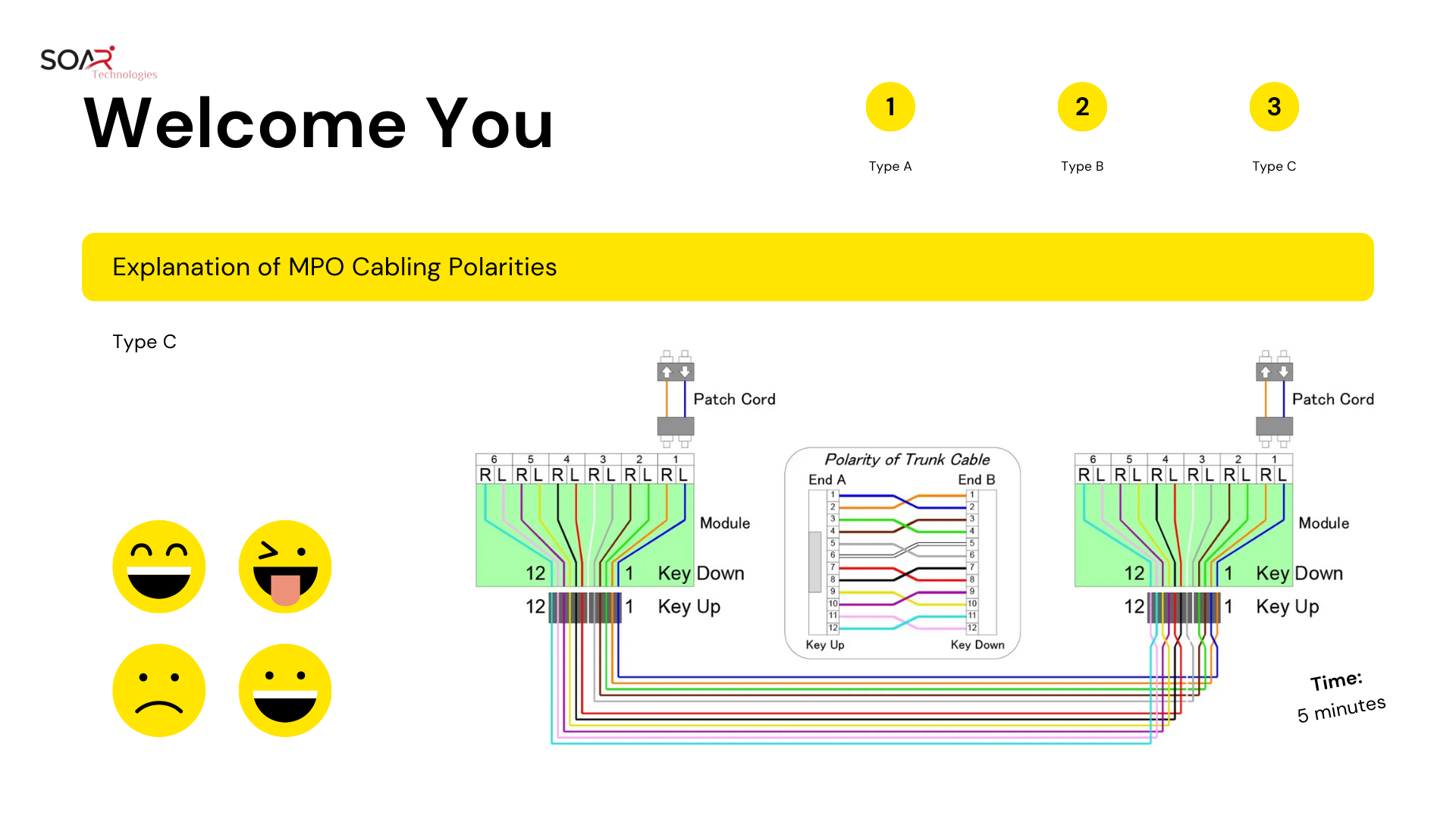

( Type B goes through MPO array cable crosswise with “Key-Up” connectors at both ends of links )
